Ideal for long term measurement of solar cell output characteristics data - Field Test System -

Summary

A software to measure and manage the data of a solar cell output characteristics over a long period by using our solar cell I-V characteristics measurer "Solar Cell Array Checker TSC-PD01/PD02/PD03"

Feature

• Measurement interval, count and time setting, sunrise and sunset etc, assortment of measurement mode is preset.
  The time of sunrise and sunset of the location is automatically calculated; long term automatic data measurement is enabled.

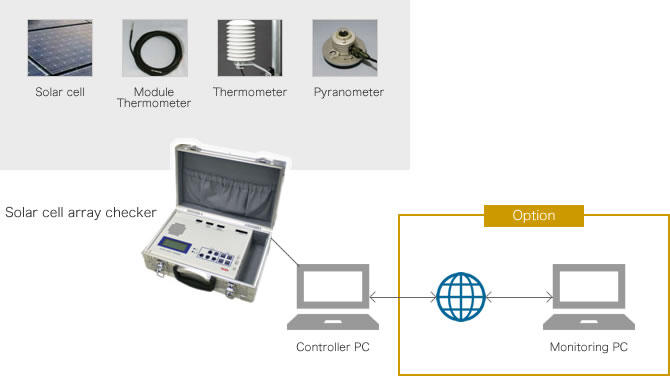

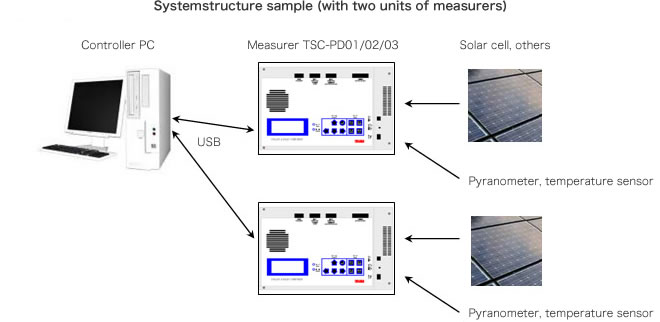

• Multiple measurers are under control, measurement data collection is possible due to differences in module angles or module types.
• As an option, remote monitoring and control is available via LAN or Internet (provided a certain network environment).
• With the function to indicate time, day, month and year in summary, the data is displayed in easy to recognize format
• The solar cell array checker and connected instruments are based on TSC-PD01/PD02/03 specification
• The system may be customized to comply with the customer's specificatio

PC Software

• Module data display



• Veriables view display



• Measurer control display



Specification

Connected instruments	TSC-PD01(500V 3.5kW)/-02 (120V 1.2kW) /-03 (600V 6kW)
Maximum connection	4 units
Measuring data	Max power, max operating voltage/current/open voltage, short current, I-V variables Irradiance, module temperature, outdoor temperature
Displayed data	Electric energy, measured variables, I-V/P-V curves, fill factor, correction variables, efficiency
Period summary display	Period selection (30 min., 1 hr., day, month, 3-month, year)
Other display	Site registration data, module data, measurer control
Data extraction	Maximum/average/minimum values, irradiance, module temperature, outdoor temperature, efficiency
Data input/output	Input/output of measured variables in CSV format
PC operation requirement	Microsoft® Windows® XP (Japanese version only) * The design and specification of the product may be changed/modified without prior notice
